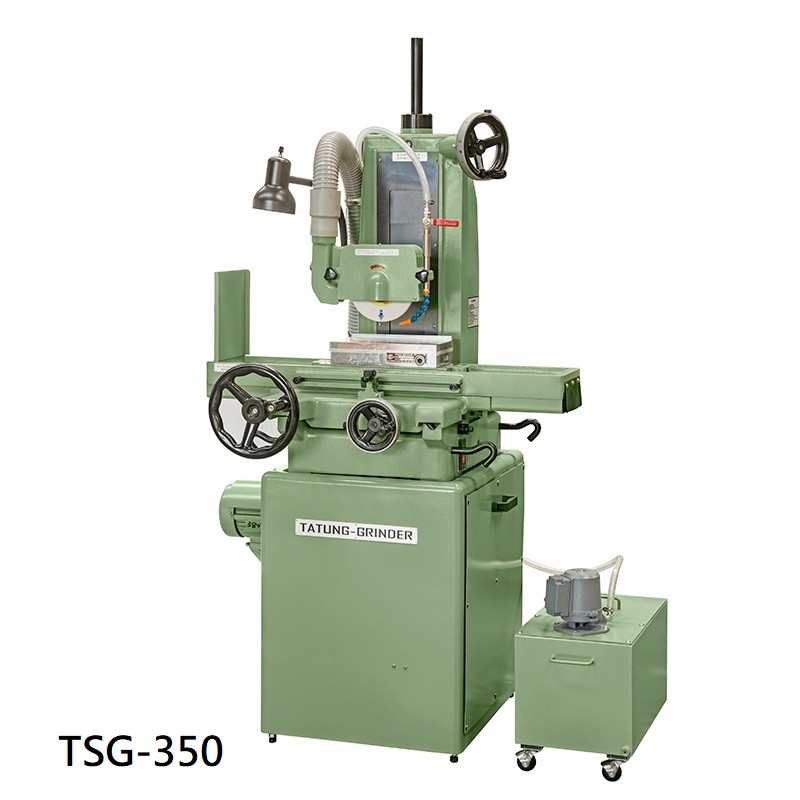

TSG-350 AKUMA -GRINDER 冠隈精密平面磨床机
特性:吸尘设备内含于本机，节省厂地空间，适合半导体 、模具 、光学等高精密度产业使用。 机 器 规 格
润滑油迴路图Diagram of lubricant loop 弹筒式主轴：砂轮主轴与马达ㄧ体设计 Integrated design including spindle with cartridge type,spindle of grinding wheel,and motor.
工作高度 Working height
台面至砂轮轴中心距离为385mm，大型夹具和修整器皆可使用。
The distance form surface to center of grindingwheel shaft is 38.5mm,can use large fixture and trimmer.
工作台滑轨 Slide rail of working stand
工作台滑轨 Slide rail of working stand

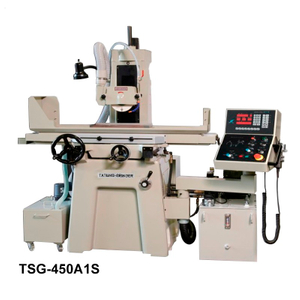

鞍座滑轨为V型及平型设计，TSG-450为V型双轨，并贴有铁弗龙(TEFLON)薄片，使工作台之运动轻快，确保其精确性。
Slide rail of saddle is V and flat type desige, TSG-450 is V type with double track,and with(TEFLON)flap,those makes movement ofworking stand light and fast to assure accuracy.
自动润滑系统 Auto lubrication system
自动润滑系统 Auto lubrication system
採用电磁泵控制润滑油继续不断的循环，润滑所有滑轨
、上下及前后螺桿。
Adapts electromagnetic pump to control continuous circulation of lubricant in order to lubricate all slide rails, up-and-down as well as back-and-forth screw.
高刚性立柱 Compact and vertical pillar
高刚性立柱 Compact and vertical pillar
採用H型构造，强度大，宽跨距滑轨，主轴不生振动， 确保加工成品精度。
Adapts H type construction,high intensity,wide span of slide rail,spindle is vibration-free to assure accuracy of finshed product during orocessing.
弹筒式主轴 Spindle with cartridge type
弹筒式主轴 Spindle with cartridge type
使用超精密(P4)级滚柱/滚珠轴承，轴端偏摆3μ以下，密封式油脂润滑，确保长期寿命，主轴更换简单容易。
Use super precision (P4) grade of roller/ball bearing,end of bearing is placed under 3μ, sealed type of grease lubrication to secure long life,and it is simple and easy to replace spindle.
左右驱动系统 Left-and-right driving system
左右驱动系统 Left-and-right driving system
由特殊钢索传动动作快，精密度高，不生震动。
Driven by special wire rope,its movement is light and fast, accurate,and no vibration occurred.
简洁吸尘系统 Economical Dust Collecting System
简洁吸尘系统 Economical Dust Collecting System
与本机一体(TSG-350)，节省空间，切屑容易清除。
Integrate with main machine (TSG-350), can save space,and it is easy to remove chips.
附件齐全 Complete accessories
附件齐全 Complete accessories
适合各种研磨作业，充分发挥机械的性能。
Proper for various grinding operation, and fulfill mechanical functions completely.
标准附件 Standard accessories
1.吸尘系统(TSG-350) Dust collection systen (TSG-350)⋯⋯⋯⋯⋯⋯⋯⋯⋯1组/st
2.砂轮(直径x厚度x孔径) Grinding wheel(Dia.x thickness x Bore 180x13x31.75) ⋯⋯⋯⋯⋯⋯⋯⋯1个/pcs
3.砂轮凸缘及拔取具 Flange and plucking tools⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1组/set
4.砂轮平衡捧 Blancing bar of grinder wheel⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1支/pc
5.台式钻石修整器 Stand type of trimmer ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1组/set
6.工作灯 Working light ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1组/set
7.水平调整螺丝及基础盘 Horizontal adjusting screw and base plate ⋯⋯⋯⋯ 各4个/ e ach 4pcs
8.工具及手提式工具箱 Tools and hand carrying tool case ⋯⋯⋯⋯⋯⋯⋯⋯⋯1组/set
9.吊勾 Hook ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯4支/pc
10.栓塞 Psston ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ 4个/pcs
11.润滑油 Lubricant ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯2公升/liters
12.使用说明书 Operation manual ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1册/set
特殊附件(依需要另行购买) Special accessories (Options)
1.永久吸磁盘 Permanent magnet pan
2.倾斜式永久磁吸盘 Bevel type of permanent magnet pan
3.砂轮平衡台 Balancing stand of grinding wheel
4.砂轮凸缘 Flange of grinding wheel
5.脱磁盘 Demagnetizer
6.注水装置(附防水罩) Water filling device (with water-proof cover)
7.光学尺 Optical rule
8.吸尘系统 Dust collection systen.
全自动磨床机,模具加工机器,平面磨床机,金属加工机械,五金加工机, 台湾制造专业磨床机器工厂,
冠隈磨床机械工厂
销售方式：制造、批发、零售、出口
出口贸易条件：EXW 工厂交货条件
销售目标市场：台湾、中国大陆、香港、新加坡、印度、印度尼西亚、越南
竞争特点
品质优良：铁材/铸铁--冠隈AKUMA-GRINDER制造的磨床，品质稳定, 精度高
可接受特别设计或LOGO，接受客制化专案磨床设计制造
竞争价格：磨床冠隈精密机械有限公司可提供给您的公开报价如下，实际报价金额依需求而定
TWD 200000-240000 /台
多样设计：冠隈精密机械有限公司提供磨床的多样化设计，多款半自动、全自动TSG磨床
接受小额订单：冠隈精密机械有限公司可接受询价最低订购量为1台
磨床接受进行原厂委託代工制造OEM
