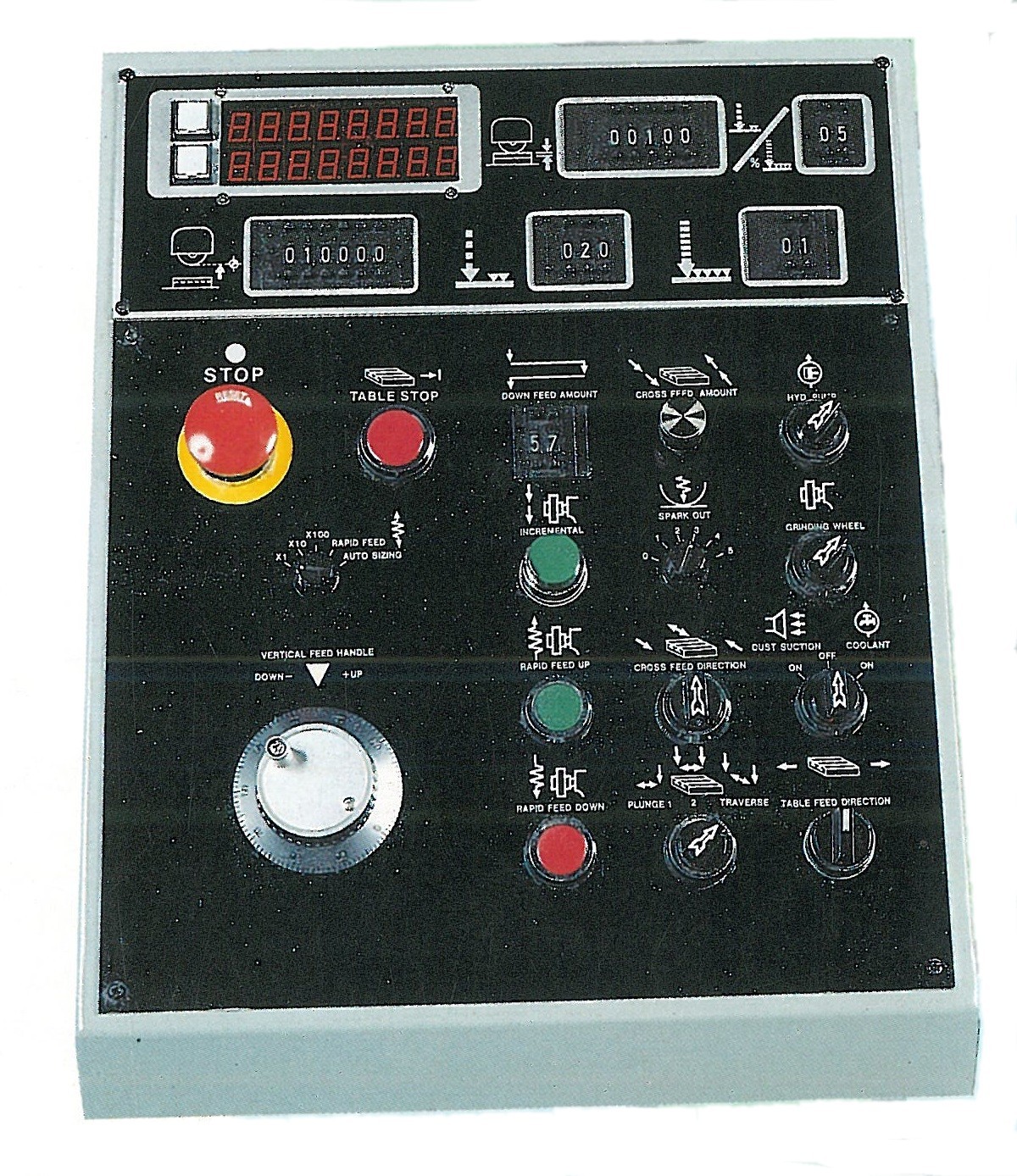

TSG-1224NC TATUNG -GRINDER 大同精密自动平面磨床

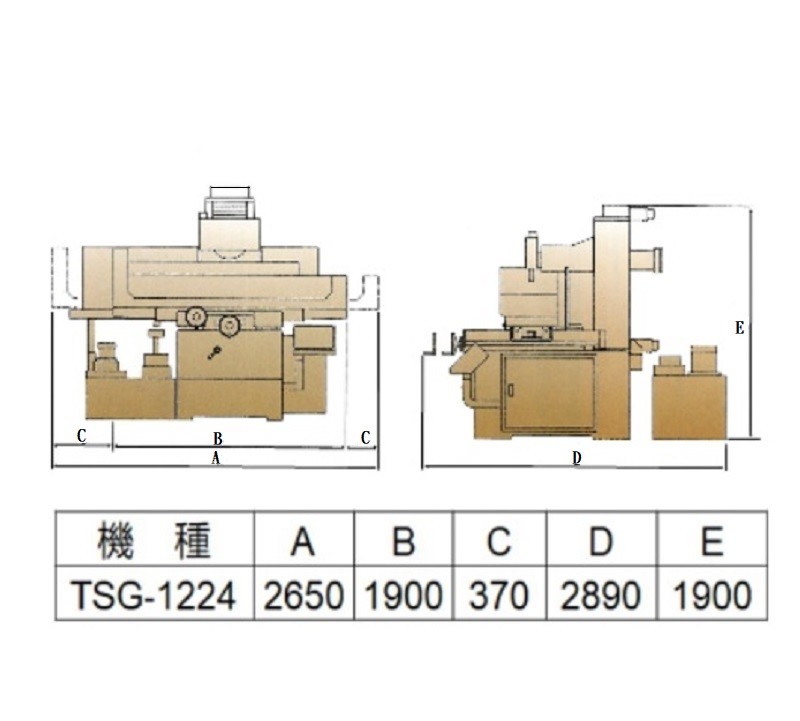

机 器 规 格：
特性:高精度磨床，稳定性良好，适合半导体 、模具 、光学 、牙板业等高精密度产业使用。
润滑油迴路图Diagram of lubricant loop
弹筒式主轴：砂轮主轴与马达ㄧ体设计 Integrated design including spindle with cartridge type,spindle of grinding wheel,and motor.
工作高度 Working height
台面至砂轮轴中心距离为385mm，大型夹具和修整器皆可使用。
The distance form surface to center of grindingwheel shaft is 38.5mm,can use large fixture and trimmer.
工作台滑轨 Slide rail of working stand 工作台滑轨 Slide rail of working stand 鞍座滑轨为V型及平型设计，TSG-450为V型双轨，并贴有铁弗龙(TEFLON)薄片，使工作台之运动轻快，确保其精确性。
Slide rail of saddle is V and flat type desige, TSG-450 is V type with double track,and with(TEFLON)flap,those makes movement ofworking stand light and fast to assure accuracy.
自动润滑系统 Auto lubrication system 自动润滑系统 Auto lubrication system 採用电磁泵控制润滑油继续不断的循环，润滑所有滑轨、上下及前后螺桿。
Adapts electromagnetic pump to control continuous circulation of lubricant in order to lubricate all slide rails, up-and-down as well as back-and-forth screw.
高刚性立柱 Compact and vertical pillar 高刚性立柱 Compact and vertical pillar 採用H型构造，强度大，宽跨距滑轨，主轴不生振动， 确保加工成品精度。
Adapts H type construction,high intensity,wide span of slide rail,spindle is vibration-free to assure accuracy of finshed product during orocessing.
弹筒式主轴 Spindle with cartridge type 弹筒式主轴 Spindle with cartridge type 使用超精密(P4)级滚柱/滚珠轴承，轴端偏摆3μ以下，密封式油脂润滑，确保长期寿命，主轴更换简单容易。
Use super precision (P4) grade of roller/ball bearing,end of bearing is placed under 3μ, sealed type of grease lubrication to secure long life,and it is simple and easy to replace spindle.
左右驱动系统 Left-and-right driving system 左右驱动系统 Left-and-right driving system 由特殊钢索传动动作快，精密度高，不生震动。
Driven by special wire rope,its movement is light and fast, accurate,and no vibration occurred.
简洁吸尘系统 Economical Dust Collecting System 简洁吸尘系统 Economical Dust Collecting System 与本机一体(TSG-350)，节省空间，切屑容易清除。
Integrate with main machine (TSG-350), can save space,and it is easy to remove chips.
附件齐全 Complete accessories 附件齐全 Complete accessories 适合各种研磨作业，充分发挥机械的性能。
Proper for various grinding operation, and fulfill mechanical functions completely. 标准附件 Standard accessories
1.砂轮(直径x厚度x孔径) Grinding wheel(Dia.x thickness x Bore 305 ø x38x127 ø ) ⋯⋯⋯⋯⋯⋯⋯⋯1个/pcs
2.砂轮凸缘及拔取具 Flange and plucking tools⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1组/set
3.砂轮平衡捧 Blancing bar of grinder wheel⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1支/pc
4.台式钻石修整器 Stand type of trimmer ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1组/set
5.工作灯 Working light ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1组/set
6.水平调整螺丝及基础盘 Horizontal adjusting screw and base plate ⋯⋯⋯⋯ 各4个/ e ach 4pcs
7.工具及手提式工具箱 Tools and hand carrying tool case ⋯⋯⋯⋯⋯⋯⋯⋯⋯1组/set
8.橡皮刮片 ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1支/pc
9.T沟螺丝 ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯ 2支/pcs
10.润滑油 Lubricant ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯6公升/liters
11.液压油 ......................................................100公升
12.使用说明书 Operation manual ⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯⋯1册/set
特殊附件(依需要另行购买) Special accessories (Options)
1.注水装置
2.吸尘注水及磁性过滤装置
3.电磁吸盘
4.自动整流脱磁器
5.手动轮顶修整器
6.油压式砂轮修整器
7.砂轮平衡台
8.半径平衡台
9.角度修整器
10.精度夹钳
11.冲子成型器
